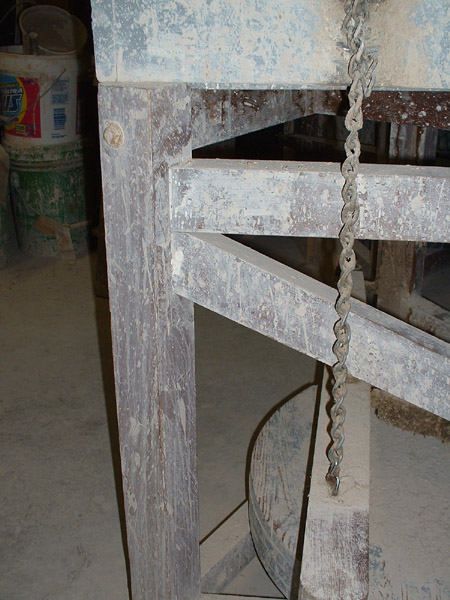

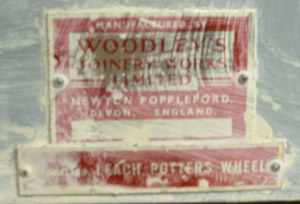

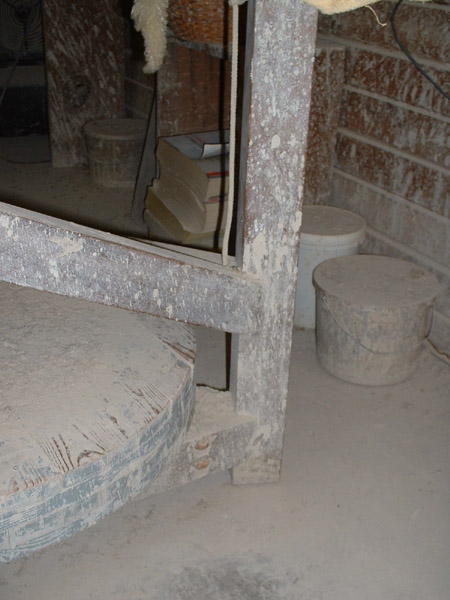

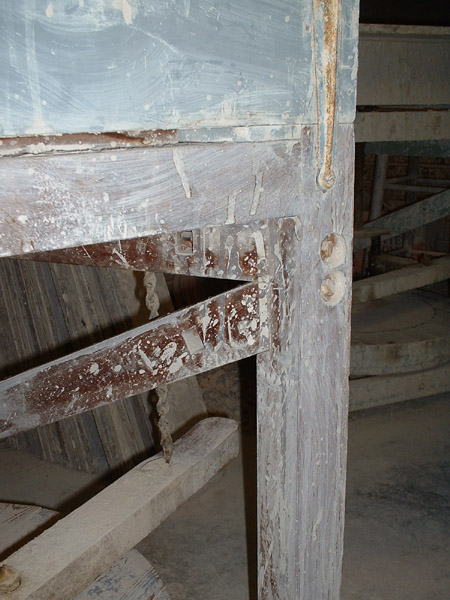

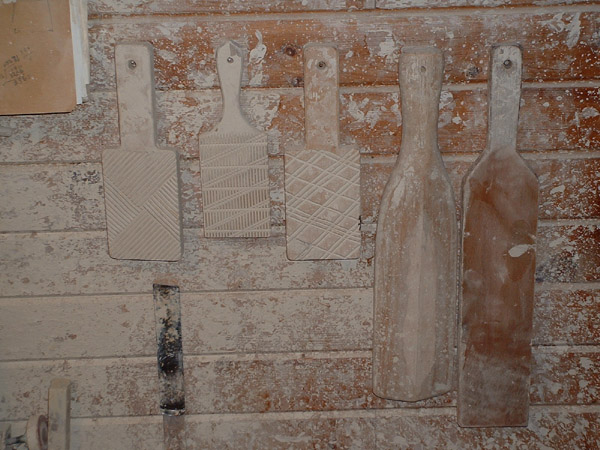

Shots of Warren Mackenzie's Treadle Wheel



I have been lucky enough to acquire a copy of blueprints for the treadle wheel from The Leach Pottery in St. Ives, Cornwall, England. It is huge (nearly 3MB), but you are welcome to view it in JPG format. Here are the images that I have developed so far..

  size type description

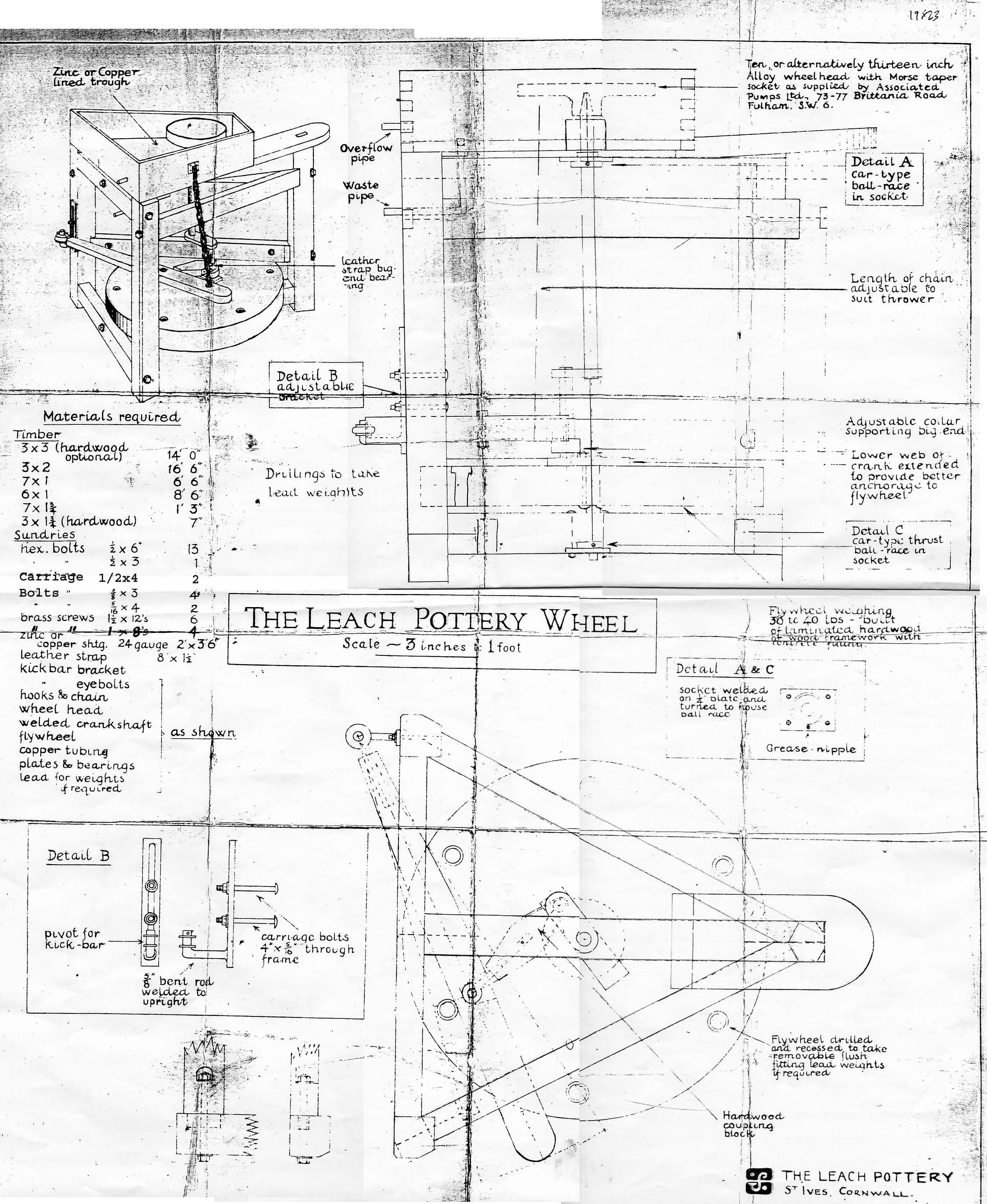

Full Blueprint Scan 2.9MB jpeg This is REALLY LARGE!
Blueprint 774K jpg This scan should print onto an 8.5 by 11 sheet of paper.

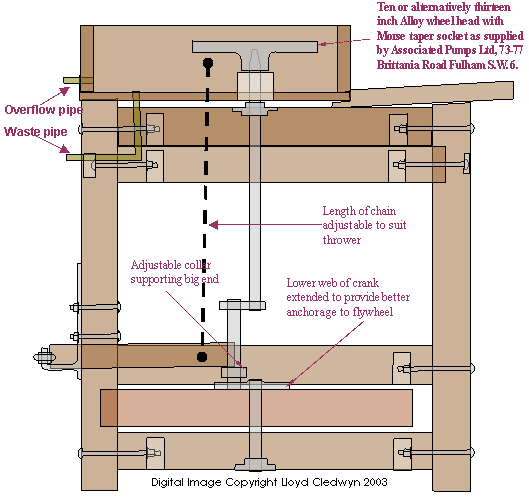

Side View 16KB GIF Created using a vector graphics program, tracing the blueprint the fixing angles and such.
Side View 2.5MB ppt Powerpoint construction
Side View 49KB ppt Powerpoint construction, vectors only.

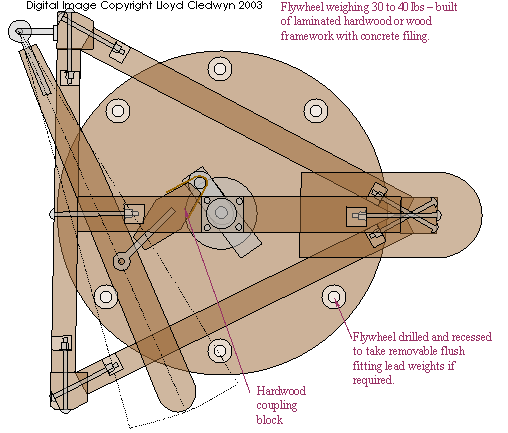

Top View 17KB GIF Also created using vector graphics.
Top View 2.9MB ppt Powerpoint construction.
Top View 48KB ppt Powerpoint construction vectors only.
Material List link

A SELF RELIANT POTTER by Andrew Holden

Many people also wish they could get a hold of Andrew Holden's book "A Self Reliant Potter". Unfortunately that book is out of print. Here are some brazen reproductions.

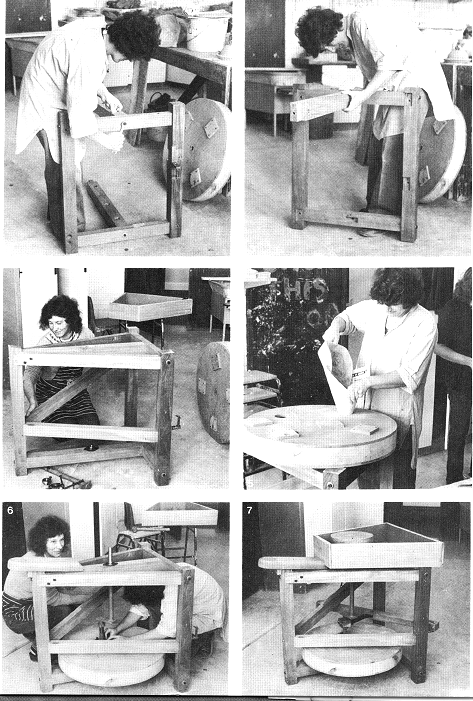

Page1 , Page2, Page3, Page4, Page5, Page6, Page7, Page8

Those are straight images of the pages, Here is a transcribed version with more ledgable text

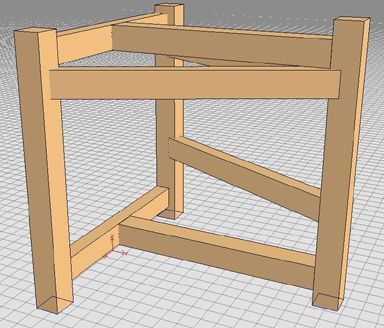

In testing out a CAD program, I mocked up the basic frame (Without the standard cross link bar)
